February 23, 2009

Part 1 - Tiny Pictures of Hope That You May Not Believe

An Interview with John Hart, creator of "nanobama"
(Part 1 of 2, link to Part 2)
When starting off doing research into this article, I realized one of the first things I needed to understand was: exactly how big is a nanometer in imaginable terms. So I did what most intelligent parents across the planet do when they realize their own math lessons are long out-of-date and asked my nearly 9-year-old son to explain it to me.

Well, after a couple of “gosh Dad, you’re so dumb” statements from Ziggy Jr., we were together able to locate various explanations (
1, 2, 3) that may or may not help you as well. Kindly note that we have intentionally avoided any descriptive that in any way relates to the sheer scale of bonuses your local bank manager is receiving in relation to said bank’s tax-payer-sponsored bail-out package:
· Nano, a prefix meaning "dwarf" in Greek, also means one billionth. A nanometer is therefore one billionth of a meter;
· One-billionth (10 to the -9 power or 0.000000001 or 1m/1,000,000,000) of a meter is about 25-millionths of an inch;
· Objects that are a few to several hundred nanometers in width are called a nanoparticles, and nanotechnology is the science of manipulating nanoparticles;
· Carbon nanotubes or CNTs are one form of highly organized structures that are included in this area, where you may have also heard of Fullerenes or Bucky Balls or any number of interesting related topics;
· The width of a human hair is about 80,000 – 100’000 nanometers across. In relation to this for example, starting with 1 meter and each time getting 1,000 times SMALLER:
- 1 meter – about the size of a two-year-old child or medium-sized dog, the length of a poster or even a typical Ziggy Nixon blog introduction, etc.;
- 1 millimeter – about the thickness of a dime;
- 1 micrometer – size of pollen, red blood cells, baker's yeast, some bacteria;
- 1 nanometer- the size of some viruses, width of strands of DNA and RNA, thickness of a cell membrane;
· Other comparative examples expressed in nanometers include:
- The period at the end of a sentence is almost 500,000 nanometers in diameter;
- A basketball is about 239,506,000 nanometers wide;
- And while we’re on the topic of basketball, did you know that Shaquille O’Neal is over 2.16 BILLION nanometers tall (which is remarkably enough the same amount of money in billions that he is paid each year);
- And
this one we liked a lot: you’d have to move a 3-square-inch Post-It® note a distance equivalent to half-way around the Earth for it to appear 3 nanometers in size, assuming of course that you could still even see it (hint: you couldn’t without a really good telescope).

Now I don’t mean to belittle John Hart’s work at all; in fact, in all of my years of travel and other semi-professional going’s-on (or is it going-on’s?), I doubt that I have seen a more impressive
résumé of any type. John’s current work is astounding and also his proposals, for example, along with Neri Oxman and their ‘Construction in Vivo’ work (see also mention of the Holcim Next Generation Award for Sustainable Construction) boggle the mind in terms of what they could mean to everyone of us currently sitting on this greenish-gray ball. And even though said journeys have also led us past the topic of nanotechnology once or twice, John and his team’s recent creative approach to illustrating what can be accomplished with this technology, namely the generation of “nanobamas” found at the site of the same name, only added to our fascination of this topic. And now that our meter worth of introductions is finished, let’s dive right in:

John, how did you get involved in the world of nanotechnology?

I was actually a graduate student at MIT and was reading papers about micro-nano-technology. From here I was very fortunate to receive a fellowship from the
Hertz foundation, which is a private foundation here in the United States that funds PhD research in applied science. It’s actually quite a selective program so I was very surprised and honored to be chosen.

This gave me the flexibility along with my advisor to explore a new topic for both of us. It was a complete departure but I was fascinated and intrigued by the properties and potential of carbon nanotubes.

My background at that point was in design manufacturing. We were thinking about how to make design a machine and a manufacturing process to make nanotubes grow really long. Our target was hopefully to make the properties of the individual molecules at the scale that would could essentially hold in our hands and use as macro-scale materials. That part of our work is still a dream, but we have come a long way and have made significant progress in the five years since we started.

Would you say your “youthful aspirations” tended towards art or science or a combination of both?
Like most kids there was a time I wanted to be an architect, a time I wanted to be a surgeon or even a paramedic, etc.. My interests fluctuated.

My dad was an engineer and a scientist. I couldn’t say though that I wanted to follow in his footsteps. The one experience that maybe resonated in my subconscious was that he had a kind of shop in the basement and sometimes I’d go down there with him when he went to work on Saturdays and I liked to tinker around, too. But really there was no long-term aspiration that led me in this direction.

I think my aptitude in school – other than being like the worst kid in gym class – was not an artistic one. I was more into math and the sciences than art, and I did very well in those subjects. But the thing I enjoyed the most in high school was actually debate. I think other than what we’re talking about now, being involved in debate is one of the most valuable things I’ve ever done. It’s still incredibly useful even for what I’m doing now with both my research and teaching at the University of Michigan. It was so valuable to learn how to organize my thoughts, how to write up and outline proposals, and of course, it was excellent experience in learning how to make presentations.

Can we get the “Junior High School demonstration” description of growing nanotube forms?

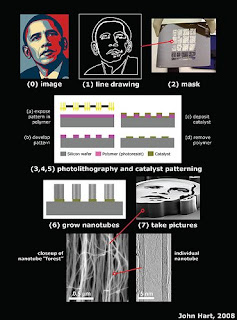

I think the visuals provided on the nanobama site is a real good accompaniment for a lesson in how we do this, because it makes it easy for all of us to imagine.

The processing parameters of course all depends on the form we want to make. But if we take an image – in this case Shepard Fairey’s famous (ZN: and
slightly controversial) picture of President Obama – we then use Adobe illustrator to convert it into a line drawing. Of course, for the more “technical images” we make there are other software programs we can employ to make the starting image.

Then using optical cameras, we print the image via laser at very small scale onto a glass plate which we call the mask. We then shine ultraviolet light through the mask – which is essentially transparent where the shape of Obama’s face appears – and onto a thin layer of polymer on a silicon wafer, thereby patterning the polymer by photolithography with extremely fine detail.

Then the wafer is coated with a very thin layer of catalyst nanoparticle "seeds" which essentially tell the individual nanotubes where to grow. We then remove the remaining polymer that is not needed on the mask, leaving the catalyst seeds in the shape of the image. The resulting wafer that we’ve made is then placed in a furnace with the needed components present which includes a carbon-containing gas.

How does the picture result or appear after the processing?
The carbon nanotubes or CNTs are grown from the catalyst patterns into an organized structure of a “forest” of nanotubes. Each Obama portrait is about 150 million tiny carbon nanotubes in parallel – or approximately equal to how many Americans voted in the 2008 presidential election!

It really can be thought of as if you’re standing in a super super tall forest of trees – of course if you were extremely small yourself. Just imagine though that if each individual nanotube was the size of a real tree – about 1 foot in diameter – then this forest would consist of 100 million super tall trees. Not only that, but these trees would still be growing at the speed of sound or at over 500 feet per second!

The CNTs aren’t “solid” like a tree, however; instead, they are tiny hollow cylinders of highly ordered carbon. (As mentioned in the introduction) their diameter is tens of thousands of times smaller than a human hair or even the period at the end of this sentence. Other properties are that they are several times stronger and stiffer than steel on an equivalent density basis.

(As shown above,) the nanobama faces are approximately 0.5 millimeter wide, or again calculating back, about ten times the width of a human hair. The final images – even the larger ones – are only barely visible to the naked eye (if at all) and are taken using optical and scanning electron microscopes (ZN: for further details into SEM, see the previous report on the work by
Martin Oeggerli).

How do you make the “seeds” used to grow the CNTs?
We use a process known as chemical vapor deposition that provides a very thin layer of iron metal onto the surface of our silicon wafer “template” to define the shape of the image.

During the very high temperature heating of the wafers, a carbon dome appears at the site of the catalyst that just continues to grow upwards and perpendicular to the surface until the system runs out of material. That may sound easy but it’s definitely a lot more tricky than that!

How much does one of these images cost from start to finish? For example, would it be practical to start up a portrait company using this technology?
It’s kind of difficult to say exactly. The processing is done on a full scale, that is, we process an entire silicon wafer. The biggest part of the costs comes in processing that whole wafer. In terms of these images we’ve made, for us the real costs come from our time because we put something like this on the same wafer we’re using for our research.

In terms of overall costs, the dedicated costs to make the images is probably only about 50 dollars for use of the SEM to take the pictures. But if we consider the part of the wafer (which is about 4 inches total in diameter) where the pictures are made – about 1 square centimeter – add to that the technicians time, the time as well needed to make the mask and the time on the machines, then it might run about 2,000 – 4,000 dollars for imaging of each section individually.

I guess if you wanted to sell then each image, well, then a lot of the cost will be in creating the image and could run then something like several hundreds of dollars per image. And that’s without color (if you want color in an SEM image, you have to add it later with something like Adobe Illustrator or Photoshop).

Where do you see the most practical future for nanostructure technology for the near or long-term future?
Of course, nano materials and nanotechnology are already in use in many applications. If we focus just on the long-term benefit’s and practicality, I see most of the benefit being in two extremely large and potentially beneficial areas, namely, energy and medicine.

With energy, I see a lot of potential in using nano structures to make solar cells, batteries, capacitors and devices which allow us to better optimize energy conversion.

In medicine as well, there are so many practical uses. Many researchers are already looking at nanotechnology in terms of creating agents to deliver drugs that target specific sites, or to recognize certain molecules or antibodies in the blood, thus making treatments much more effective. This technology can also be used to even target specific organs or tumors without damaging the areas of the body around these that might not be stable to otherwise invasive or damaging treatments.

In addition, there is tremendous potential for nanotube technology to help in diagnoses by acting as “contrast agents” for imaging. For example, you can create nanoparticles that are photoactive or perhaps even coated with a given material so that they bond to the surface of a given abnormality or other defect. The imaging that can then be made enables the analyses and preparation for treatment again much more efficient. The more exact in terms of how we learn to design the individual structures, the more uses we’ll find.

What are the little "hairs" on some of the images, like we see above on the nano-flag?
We start out with a full silicon wafer which is broken up into 1 cm square pieces; when you break it up you scratch it and cleave it with a diamond scribe. This creates silicon dust with catalyst on one side.

This dust then acts as a growth point for these extra nanotubes that are then no longer aligned. These appear then in the SEM images as “hairs”.

Why do the edges in some of the shapes glow?
These are local charging effects in the electron microscope that, along with the intensity of the electron beam and the position of the detector, can create apparent lighting and shadowing effects in the electron microscope image. But it is very fascinating in that it provides a very interesting and natural kind of “lighting effect”.

Plus, working with SEM also enhances what we’re able to illustrate as this process can resolve features much smaller than the wavelength of light, and has a relatively large depth of focus.

How do you obtain such clear order in some images (e.g. Obama’s face) vs. others that appear to be a mix of wild hairs or even less ordered structures?
I think the uniform growth comes from understanding the reaction conditions better. Like how to supply enough carbon to feed all the nanotubes “happily”, how to reproduce the processes better, etc. Today, by controlling the density of the catalyst particles as well as the reaction temperature and chemistry, we can grow these CNT forests to millimeter heights with amazing exactness and detail.

Key is the understanding that the architectures are formed by self-organization of the CNTs as they grow upward from the silicon substrate from the catalyst layer. If we distribute the catalyst uniformly, nanotubes will grow everywhere on the substrate. How the nanotubes organize themselves is defined by how they push and pull each other to produce the architectures shown.
On the other hand, if the catalyst is only put in certain areas (patterned), again like the Obama portrait, then the nanotubes will grow only from those areas that are coated with catalyst. We’re just continuing to gain a lot more experience and getting better and better at the design processes I guess.
continued in Part 2

Part 2 - Tiny Pictures of Hope That You May Not Believe

An Interview with John Hart, creator of "nanobama"
(Part 2 of 2, link to Part 1)
Can you explain a bit more about the difference between the disordered structures and either the Metropolis (shown here at the left) or Barn images.
All of these architectures were formed in the same way as described in terms of preparing a mask, using the metal catalyst to seed growth, etc.. The Metropolis patterns compared to the disordered patterns are just a result therefore of not only applying the catalyst in an evenly patterned form but also by getting the process much more under control.

However, in the case of the Barn-like structures, the growing CNTs were also subjected to mechanical pressure during growth, that is, their formation was pushed from the outside if you will. For example, the Barn shape shown is formed as the nanotubes are confined to stay within a trapezoidal mould during growth. We can also apply mechanical pressure by other means to affect the sizes and shapes that are formed.

Why do some columns grow taller than others, even within the same form? I’m just curious how the heck you got the
Absolut Nano or for that matter the Star Burst images to grow like that (seemingly “tube within a tube” or even other shapes)?
These shapes actually happen by chance. The governing principle in their formation is that there’s mechanical stress along each of the nanotubes. If you have, say, a cylinder growing upward and perhaps the inside of the cylinder is growing faster than the outside of the cylinder, then at some point the nanotubes in the inside – a certain group of them – will break away from the larger mass.

And the combination of the friction of that center portion breaking away and the outside growing at a slower rate will cause the outside to curl outward. So it’s kind of like formation of a flower.

In other cases, the differences that may occur in the growth rates across large numbers of CNTs can cause bending or wrinkling of the forms. It’s a bit technical, but by introducing spatial and temporal gradients in the reaction conditions or by spatially varying the size of the patterns, the shapes can be influenced to grow to different heights or to lean in particular directions. The gallery of self-organized and patterned architectures that we illustrate at
www.nanobliss.com exemplifies these techniques.

Are there advantages of using either mechanical shaping or self-organized growth in terms of applications?
I think in general with micro-fabrication that the ability to make 3-D free-form structures is something that has not been done in parallel on the large scale. Sure, you can use small beams of light to make micro-sculptures but the practicality in terms of scaling-up has not been realized. If I wanted to make true 3-D structures in parallel it would be extremely challenging.

This is I think an advantage of these processes in that this technology – especially now that we’re learning more and more about how to control it better – continues to bring it closer to a true manufacturing process. And sure, various dimensional aspects that we can control – for example, forming a series of pyramids or towers or even a series of channels – can be used with particular advantages for certain applications, including micro-machinery or electronics or optics, just to name a few.


With all this in mind: where does the science end and the art begin? Or is it vice versa?
That’s a good question. I think in a lot of ways they’re intertwined.

Sure, there’s a lot of things that we do that are truly scientific, with no artistic intention. The purpose of imaging these structures – and the way that
www.nanobliss.com started – was just in that I was taking pictures for my research, particularly because I didn’t have growth conditions in hand as well as we do now. The growth as you can see was more kind of random.

The art began I guess as we started thinking about using these images or taking new ones of the forms we were coming up with for an artistic purpose. Just the natural self-organization of the CNTs gave some artistic value.

Few of the things we’ve illustrated have outwardly been meant to be artistic. Certainly the nanobama’s were one but this was more of a fun project. But I am thinking more about how to develop the artistic side of it, from maybe a business point of view even selling some images or samples. Or creating more art projects.

Really though it’s a great way to help illustrate what we’re aiming for in our research and demonstrate the principles of organization at a nano-scale. If you can create and illustrate things that people can relate to at small scales, it helps them visualize what the process can achieve. Even every day objects can be used to describe the process; for example, if we illustrate the sky-line of a city, there are principles of the fabrication process embodied in the form.

Or for example using structures to generate patterns of light: there are very clearly defined quantum principles in terms of how nanocrystals respond to light and emit certain colors. If you combine this with nanotubes you can control what colors are formed. Case in point: we wanted to try before Christmas – though we just couldn’t find enough time – to make a “nano-Santa” illustration and color it with quantum dots and make it appear to flash either red or green. Granted you don’t get color with SEM, but in this case we wanted to make it at a scale where you could see it with a normal microscope or even with the naked eye.

So does making art ultimately help with your work, either by teaching or even getting attention (not necessarily fund-raising but if yes, why not…)?
I don’t think the artistic side helps with fund-raising at this point but it does help with teaching. It also maybe helps with outreach. I think this is important perhaps from the other side of funding, perhaps in general with The National Science Foundation or something similar, but I don’t think I’ve realized anything in practice this way.

The greatest thing about it is that it connects me with an audience that I would otherwise not reach. I mean, the media attention for the nanobama’s got a bit crazy and it kind of overwhelmed me at first. I realize now why it happened the way it did but I really didn’t think about what could happen in advance when we made them.

But it’s exciting because I mean these pictures have now been seen by millions of people. They were literally everywhere for a while, in newspapers and web-sites around the world, on all continents, popping up in all kinds of places that I’d never expected. And how many people would have ever seen a structure made out of carbon nanotubes?

For us in the lab, sure, it was kind of basic and a kick to make, but it’s just one representation of what we do every day. Maybe it’s not that not novel to us but it is a basic element of nanotechnology, an aspect that so many people have never seen or would not have seen otherwise. So for us it is such a privilege to think that the work we’ve done has been seen by so many people. And if only a handful of people decide to read a bit more about it or maybe even sign up for a course at the University or ask their science teachers at any level, that’s really cool. That’s the big win for us.

There has been some recent criticism in the press recently about the overall health and safety aspects of using nanotechnology. How would you address that?
This is an important and unresolved issue for nanomaterials that are already in use, and for those yet to come, that is, those that will be in use in the future. I think very importantly, we must not be alarmed by the hype. As with any new area of science and technology, we must support research into investigations of long-term health and environmental impacts of nanomaterials, and must be cautious where necessary.

We need to also consider the “use cases” and weigh the benefits vs. these. For example, even if particular nanoparticles or even nanotubes are potentially dangerous, in most uses we wouldn’t ingest them. Just consider computer chips and circuit boards: these contain toxic materials, and of course, we need to consider life-cycle issues as well (e.g., disposal, recycling). But we each have many such cases of these materials in our lives and as long as they’re used correctly, we’re okay. (ZN: visit the
Center for Responsible Nanotechnology for more if you’re interested)

If nanotechnology could fulfil your “ultimate dream” – either artistically or otherwise – in terms of it’s benefit of man as well – what would that dream be?
Oh, I wasn’t ready for this question. I should probably already have a good answer ready.

I do think for myself one of the main dreams is to understand the fundamental mechanisms of energy conversion and how to design materials to optimally convert energy from one form to the other. If we can efficiently get energy from one source – like sunlight and store it as hydrogen – that would affect and benefit all of mankind.

Also as I indicated earlier, the benefit’s that are theoretically possible in terms of detection and treatment and understanding of the mechanisms of chronic diseases.

I think these are the two areas that can most broadly affect society. But it won’t stop here. We’ll also learn how to make stronger and lighter and more efficient materials. As indicated on our nanobliss site, because CNTs are cylindrical molecules of carbon atoms arranged in a hexagonal lattice as in graphite, they have incredible potential. Because the carbon-carbon bonds present are very stable and extremely strong, and because CNTs are seamless and have a very small diameter, CNTs have exceptional properties.

For example, high-quality CNTs exhibit several times the strength of steel piano wire at one-fourth the density, at least five times the thermal conductivity of copper, and very high electrical conductivity and current-carrying capacity. Sure, such properties have generated broad interest: for potential applications such as next-generation electronics where individual CNTs are transistors, to even in the use of space-age composites. In this case, literally trillions of CNTs would work together to form the structure of an airplane wing at only a tiny fraction of the same weight. For example, a fully-loaded 747 (~ 400 tons) could hang from a 5 millimeter (1/4 inch) diameter rope made from continuous parallel CNTs!

But it’s not only in these areas that we are looking to improve properties and uses of CNTs. We also exploring the possibilities to use materials that are made out of natural components, like natural fibers, plants and wood. This is just another aspect of closing the gap between what we as humans can do and what nature can do.

znznznznznznznznznznznznznznznznznzn

As John indicates on his web-sites, beyond the fun he and his team had with the nanobama images, carbon nanotubes and other nanostructures are being taken very seriously indeed as potential building blocks for many important technological advances. As mentioned, these include high-performance solar cells and batteries, new methods of diagnosing and treating disease, next-generation computer processors and memory-storage, and lightweight composite materials.

John goes on to indicate that certainly broad awareness and understanding of the widespread benefit’s, implications, and yes, even the potential risks of nanotechnology will be essential for it’s commercial success. Likewise, public and private support for research and education programs catalyzes economic growth and enables continued breakthroughs in energy, medicine, communications, and other vital areas. And again, if this article in some way makes you interested in learning more about nanotechnology, then that’s good, too!

For more, check out the sites mentioned in the article as well as the
complete collection of nanobama images at flickr. Also, if you want to check out a “condensed” view of this input, see the following YouTube video (I’m not sure if this counts as getting “scooped” or not, as our interview with John took place in December 2008).

znznznznznznznznznznznznznznznznznzn

John Hart is Assistant Professor of Mechanical Engineering at the University of Michigan in Ann Arbor, Michigan. He holds Ph.D. (2006) and S.M. (2002) degrees from the Massachusetts Institute of Technology, and a B.S.E (2000) degree from the University of Michigan, all in Mechanical Engineering. Again, if you want to be wowed, take a look at his
résumé.

He has industrial experience in engineering and project management at General Motors, and through various consulting appointments. John received the 2006 MIT Senturia Prize for best doctoral thesis in micro/nano technology, and graduate fellowships from the
Fannie and John Hertz Foundation, National Science Foundation, and MIT Martin Foundation. In 2008, John received a DARPA Young Faculty Award (for proposed research on energy harvesting using nanostructures), a R&D100 Award (for the SabreTube Desktop Thermal Processing System), and the Holcim Next Generation Award for Sustainable Construction (for design of energy-saving responsive nanocomposite building skins).

John's
research currently focuses on synthesis and applications of nanostructured materials, machine and instrument design. John's nanobliss gallery features his work on scientific visualizations of small-scale structures. Since 2006, John's images have been featured in American Scientist, SEED magazine, PC Magazine, several other international publications and exhibitions ... as well as of course the world’s leading authority on cutting-edge high-technology, namely, Playboy (sorry guys, G-rated only).

znznznznznznznznznznznznznznznznznzn

All images and other materials are used with exclusive permission of John Hart. Images and structures made by John Hart, Sameh Tawfick, Michael De Volder, and Will Walker. For more information, please contact John at
